E-Box Battery Assembly

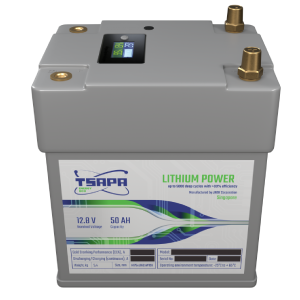

LF12050-120-B5

Car / Van / Truck

50 AH

Capacity

12.8 V

Nominal Voltage

Dimension (HLW)

175x162x128 mm

Weight

5.3 Kg

CCA

1000 A

Discharging/Charging

120/70 A

Remarks

For cars with super-capacitor or/and hybrid system^[1]

[1] Cars with starter <=1.6 kW

[2] Buffered overload protection

[3] Short-Circuit Protection

[4] Improved CCA

Recommended for gasoline engines below 1.6 litres, EV Cars and auxiliary batteries

LF12B50-120-B5

Car / Van / Truck

50 AH

Capacity

12.8 V

Nominal Voltage

Dimension (HLW)

175.74x242.31x162.8 mm

Weight

6.2 Kg

CCA

1000 A

Discharging/Charging

120/70 A

Remarks

For cars with super-capacitor or/and hybrid systems^[1]

[1] Cars with starter <=1.6 kW

[2] Buffered overload protection

[3] Short-Circuit Protection

[4] Improved CCA

Enlarge size recommended for gasoline engines below 1.6 litres, EV Cars and auxiliary batteries

LF12050-240-B5

Car / Van / Truck / Marine

50 AH

Capacity

12.8 V

Nominal Voltage

Dimension (HLW)

175x162x128 mm

Weight

5.3 Kg

CCA

1300 A

Discharging/Charging

240/200 A

Remarks

For cars with super-capacitor or/and hybrid systems^[1]

[1] Cars with starter <=2.8 kW

[2] Buffered overload protection

[3] Short-Circuit Protection

[4] Improved CCA

Recommended for large Gasoline Engine and all Diesel Engine

LF12B50-240-B5

Car / Van / Truck

50 AH

Capacity

12.8 V

Nominal Voltage

Dimension (HLW)

175.74x242.31x162.8 mm

Weight

6.2 Kg

CCA

1300 A

Discharging/Charging

240/200 A

Remarks

For cars with super-capacitor or/and hybrid systems^[1]

[1] Cars with starter <=2.8 kW

[2] Buffered overload protection

[3] Short-Circuit Protection

[4] Improved CCA

Enlarge size Recommended for large Gasoline Engine and all Diesel Engine

LF12100-460-B5

Car / Van / Truck

100 AH

Capacity

12.8 V

Nominal Voltage

Dimension (HLW)

175.74x242.31x162.8 mm

Weight

11.3 Kg

CCA

1900 A

Discharging/Charging

460/200 A

Remarks

For cars with AGM equalization charging mode^[1]

[1] Cars with starter <=4.5 kW

[2] Super Higher Power model

[3] Improved CCA

[4] Buffered overload protection

Recommended use for All Vehicles with large engines, Truck, Marine industrial application

LF12105-120E

Storage / Traction Battery

105 Ah

Capacity

12.8 V

Nominal Voltage

Dimension (HLW)

245x184x148 mm

Weight

11 Kg

CCA

900 A

Discharging/Charging

120/70 A

[1] Energy Storage for House / Office UPS

[2] Energy Storage for Boats

[3] Traction Batteries for Buggies / Scooters one-to-one Lead-Acid

replacement with no modification required for vehicles

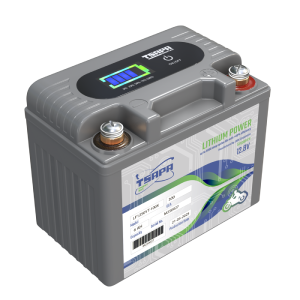

LF1250YT5-50X

Motorcycle

5 Ah

Capacity

12.8 V

Nominal Voltage

Dimension (HLW)

119x 69x106 mm

Weight

0.9 KG

CCA

150

Discharging/Charging

50/50 A

Universal application: This model is designed for an engine starting battery; however, the TSAPA Energy Box can also be used as an energy storage unit. Lightweight lithium battery only.

Compatible with: YTZ6V | YTZ8V | YTZ7V.

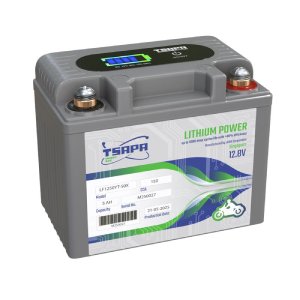

LF1250YT5-100X

Motorcycle

6 Ah

Capacity

12.8 V

Nominal Voltage

Dimension (HLW)

119x 69x106 mm

Weight

0.9 KG

CCA

300

Discharging/Charging

100/100 A

Universal application: This model is designed for an engine starting battery; however, the TSAPA Energy Box can also be used as an energy storage unit. Lightweight lithium battery only.

Compatible with: YTZ6V | YTZ8V | YTZ7V.
